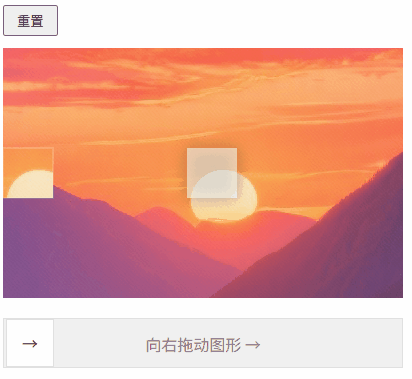

现在许多网站的登录校验都加上了图片校验，这里用vue实现一个简单图形验证。如上图，我们需要有两个图层，不可拖动的底图和可拖动的拼图，使用canvas模拟两个图层。

绘制底图

使用ctx.drawImage绘制底图图片，使用ctx.getImageData获取随机拼图图片数据。随机拼图切图位置ry固定在图中心，rx在底图范围内随机 代码如下：

import imgSrc from './assets/img.png';
const width = ref(400);
const height = ref(250);

// 图形验证码
const rect = 50
let rx = 0//Math.max(rect * 2, Math.floor(Math.random() * (width.value - rect)))
const ry = height.value / 2 - rect / 2
let graphicImgData = null
const initImg = () => {
  const img = new Image();
  img.onload = () => {
    drawImg(img);
  };
  img.src = imgSrc;
}

const drawImg = (img) => {
  const ctx = canvasBack.value.getContext('2d');
  // 清除Canvas
  ctx.clearRect(0, 0, width.value, height.value);

  // 计算缩放后的尺寸
  const scaledWidth = img.width;
  const scaledHeight = img.height;

  // 计算绘制位置（居中显示）
  const x = (width.value - scaledWidth) / 2;
  const y = (height.value - scaledHeight) / 2;

  // 绘制图片
  ctx.drawImage(img, x, y, scaledWidth, scaledHeight);

  // 获取随机的图形验证块
  graphicImgData = ctx.getImageData(rx, ry, rect, rect);

  // 绘制图形验证块阴影
  ctx.shadowColor = "rgba(0, 0, 0, 0.5)";
  ctx.shadowBlur = 15;
  ctx.fillStyle = 'rgba(255, 255, 255, 0.566)';
  ctx.fillRect(rx, ry, rect, rect);

	// 绘制拖动拼图
  // drawGraphic()
}

绘制拖动拼图

使用ctx.putImageData将上面获取的图片数据绘制到第二个canvas上，代码如下：

const gx = ref(0)
let gy = ry

const drawGraphic = () => {

  const ctxGraphic = canvasGraphic.value.getContext('2d');
  ctxGraphic.clearRect(0, 0, width.value, height.value);
  ctxGraphic.shadowColor = "rgba(255, 255, 255)";
  ctxGraphic.shadowBlur = 10;
  ctxGraphic.putImageData(graphicImgData, gx.value, gy);

  ctxGraphic.shadowColor = "rgba(0, 0, 0, 0.5)";
  ctxGraphic.shadowBlur = 15;
  ctxGraphic.lineWidth = 0.2;
  ctxGraphic.strokeStyle = 'white'
  ctxGraphic.strokeRect(gx.value, gy, rect, rect);
}

拖动拼图

• 鼠标按下时记录移动状态
• 鼠标移动时更新拼图位置并刷新canvas拼图
• 鼠标抬起或移开时记录移动结束并检测校验是否验证成功

const moveStatus = ref(MoveStatus.value.NONE)

const onmousedown = (e) => {
  if (moveStatus.value != MoveStatus.value.NONE) return;
  console.log('onmousedown')
  moveStatus.value = MoveStatus.value.MOVE
  mStart = e.clientX;
}

const onmousemove = (e) => {
  if (moveStatus.value === MoveStatus.value.MOVE) {
    const moveX = e.clientX - mStart;
    mStart = e.clientX;
    gx.value = Math.min(Math.max(gx.value + moveX, 0), width.value - rect);
    drawGraphic()
  }
}

const onmouseup = () => {
  moveStatus.value = MoveStatus.value.NONE;
  checkMoveStatus()
}

const onmouseleave = () => {
  moveStatus.value = MoveStatus.value.NONE;
  checkMoveStatus()
}

const checkMoveStatus = () => {
  if (Math.abs(gx.value - rx) <= 3) {
    moveStatus.value = MoveStatus.value.SUCCESS;
  } else {
    moveStatus.value = MoveStatus.value.FAILURE;
    // 重置位置
    // gx.value = 0;
    // drawGraphic();
  }
}
